Vertical filters have standard media depth of 1000 mm to ensure finer dirt particles and substances are retained in the filter, ensuring greater filtration efficiency. Constructed from Standard 2062 Grade A, Mild Steel sheets, and conforming to IS 226 code. Features include, Bell mouth raw water inlet for even distribution of water over filtration media and Bottom lateral assembly for collection of filtered water. Filters come with manhole and hand-hole for easy access, Mild Steel frontal pipelines, cast iron butterfly valves and filtration quartz media. Our Vertical Filters finds its application in Water Parks, Public Swimming Pools, Hotels, Resorts and clubs. Available is various standard sizes and also custom made to meet any specific requirements. Technical Specifications: • Maximum Filtration Velocity : 50 cu.m./hr/sq.m. • Media Depth : Upto 1.5 M • Maximum Working Pressure : 2.5 kgs/sq.cm. • Test Pressure : 4.5 Kgs/sq.cm. Models With Filtration Velocity : 40m3/hr/m2
MODEL NO.
FILTER AREA M2
MAIXMUM FLOW RATE M3/HR
CONNECTION
MEDIA (KG)
VSF10
0.785
31
2.5”
1600
VSF12
1.13
45
2400
VSF13
1.33
53
3”
2800
VSF14
1.54
61
4”
3250
VSF15
1.77
71
3750
VSF16
2.00
80
5”
4250
VSF17
2.27
91
6”
4850
VSF18
2.54
102
5400
VSF20
3.14
125
6600
Fibre glass commercial sand filter for Swimming Pool is made from Non Corrosive Fibre Glass and resin, light weight and are easy to install and maintain. Fibre glass sand commercial filters are available from 1200 mm Diameter to 2000 mm Diameter. Equipped with manhole, sight glass, union drain and air purge. Comes with flanged inlet and outlet connections. Internal 360 degree top inlet diffuser for balanced water distribution and bottom header lateral assembly for collection of filtered water. Extensively used in Public Swimming Pools, Water Parks, Lap pools, Olympic Pools, institutional pools, fountains and water bodies. Available in various standard sizes and flanged connections with PVC valves frontal pipelines. Technical Specifications: • Maximum Filtration Velocity : 50 cu.m./hr/sq.m. • Maximum Working Pressure : 2.5 kgs/sq.cm. • Test Pressure : 4.0 Kgs/sq.cm. • Size of Silica : 0.4 mm to 0.8 mm • Size of Gravel : 1.0 mm to 2.0 mm Models With Filtration Velocity : 40m3/Hr/M2
FGC12
1.11
46
1200
FGC14
62
1800
FGC16
2.06
82
3000
FGC18
2.52
100
3800
FGC20
2.97
120
5100
FGC23
4.43
177
8”
7600
FGC25
4.89
195
8500

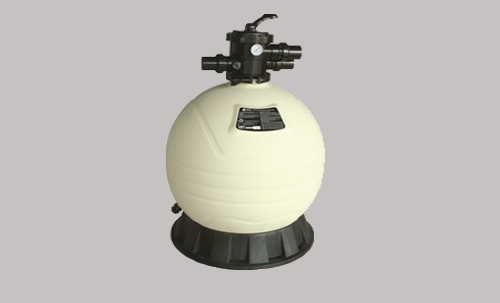

Bobbin wound fibre glass filters with top mounted valve are the most popular filters in Swimming Pool. Available from 400 mm diameter to 1200 mm diameter, Top Mount Fibre Glass Filters comes with sturdy spherical tank with bolted or clamped fitted single lever six-position multiport valve mounted on top of the filter for easy operation, ABS laterals at the bottom and a drain plug. Top Mount Fibre Glass Filters find their application in residential in ground and above ground swimming pools, hotels and resorts. Technical Specifications: • Maximum Filtration Velocity : 50 cu.m./hr/sq.m. • Maximum Working Pressure : 2.5 kgs/sq.cm. • Test Pressure : 4.0 Kgs/sq.cm. • Size of Silica : 0.4 mm to 0.8 mm • Size of Gravel : 1.0 mm to 2.0 mm Models With Filtration Velocity : 40m3/Hr/M2
TM400
0.13
5
1.5”
35
TM450
0.16
7
TM500
0.22
9
85
TM650
0.32
13
145
TM700
0.40
16
210
TM800
0.50
20
2”
355
TM900
0.64
25
470
TM1000
0.79
32
620
TM1200
860

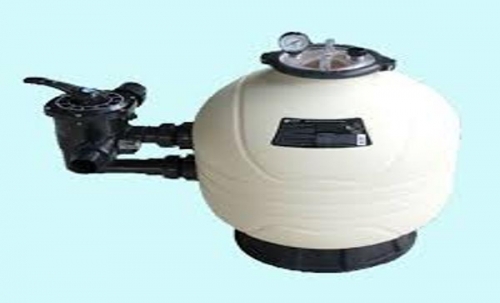

Bobbin Wound Side Mounted Fibre Glass Sand Filters made of Fibre Glass with side mounted multi-port valve are most sought after Filters for domestic Swimming Pools.
Side Mounted Swimming Pool Filters come with top raw water inlet 360 degree bell mount and bottom lateral water collector. Filters are equipped with transparent lid for easy inspection of sand bed and side mount six-position multiport valve for filter operation.
Side Mount Fibre Glass Sand Filters are installed for Commercial Swimming Pools and Spas
TECHNIAL SPECIFICATIONS
Maximum Filtration Velocity : 50 cu.m./hr/sq.m.
Maximum Working Pressure : 2.5 kgs/sq.cm.
Test Pressure : 4.0 Kgs/sq.cm.
Size of Silica : 0.4 mm to 0.8 mm
Size of Gravel : 1.0 mm to 2.0 mm
MODELS WITH FILTRATION VELOCITY : 40m3/hr/m2
SM450
SM500
SM650
SM700
SM800
SM900
SM1000
SM1200
Top Mount Plastic made from High Density Plastic blown at one piece for heavy duty performance and reliability.
Top Mount Plastic Sand Filters comes with one-piece clamp with screw type lock designed to simplify installation and tool free servicing and are equipped with multiport valve with 6-way functions and easy to read pressure gauge.
Top Mount Plastic Sand Filters are preferred for Domestic Swimming Pools, Fountains, Water Bodies and Hot Spas.
MODELS WITH FILTRATION VELOCITY : 50m3/hr/m2
PT17
0.14
40
PT20
0.20
10
70
PT24
0.28
14
PT27
0.36
18
185
PT31
0.47
23
320
PT35
0.61
30
430
Side Mount Plastic Sand Filters are blow moulded in a single piece from High Density Poly Ethylene Plastic for rugged performance.
Main features of Side Mount Plastic Sand Filters are unique one-piece clamp with inspection glass top lid, 6-way Multiport Valve for filter operation and pressure gauge.
Side Mount Plastic Sand Filters are used mainly for Residential Swimming Pools, Fountains and Hot Spas.
PS17
PS20
PS24
PS27
PS31
PS35
Combo Filters are Swimming Pool Filters with pump installed on a common base.
Combo Filters comprises of Fibre Glass Top Mount Filters and energy efficient SS/SC series pumps and offers outstanding filtration process. Synergistic effect of Combo Filters allows users to have an ease of mind as well as trouble-free installation.
Suitable for Private Swimming Pools, Spas and Fountains.
FILTER
PUMP
C350
TM350
SS033
C400
SS050
C450
SS075
C500
SC100
C650
SC150
1,5”
Cartridge Filters are ideal for Swimming Pools and Fountains.
Cartridge filter housing is made from high grade constructed piece mould PVC, designed for top loading and comes with heavy duty ring-lock lid and sturdy easily cleanable cartridges. Air bleeder for removal of trapped air and oil filled pressure gauge for easy inspection of operation.
Widely used in small private swimming pools, vacuum cleaning of pools and spas.
Maximum Water Temperature : 40 degree C.
CF25
2.25
5.5
CF50
4.63
11.4
CF75
7.00
17.0
CF100
9.40
22.9
CF150
13.72
33.4
CF200
16.82
40.9

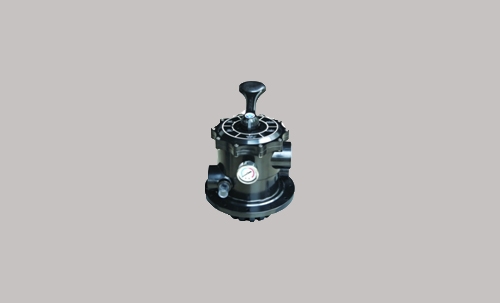

Clamp Type Connection
Suitable for Top Mount Fibreglass and Plastic Filters
Technical Details
Ports : 6
Maximum Working Pressure : 5 Kgs/cm2
Maximum Flow Rate : 17 M3/hr.

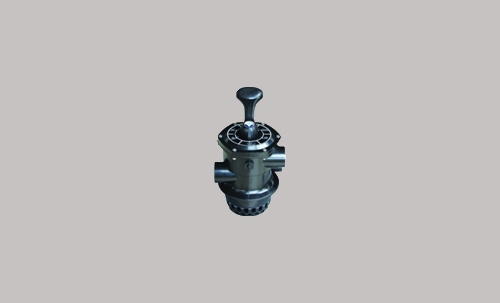

Bolt Type Connection
Suitable for Top Mount Fibreglass Filters
Maximum Working Pressure : 3.5 Kgs/cm2
Maximum Flow Rate : 27 M3/hr
Union Connection
For Side Mount Fibreglass and Plastic Filters
Maximum Flow Rate : 17 M3/hr

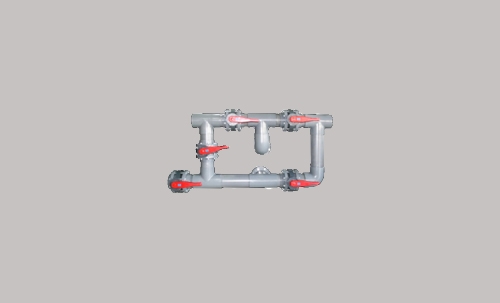

Butterfly Valve system for commercial filters is manufactured with non-corrosive material and flanged connections for easy installation and heavy duty usage.
Maximum Working Pressure : 2.5 Kgs/cm2
Test Pressure :
Maximum Water Temperature : 43 degree C.
Pipe Sizes : 3” to 8”
