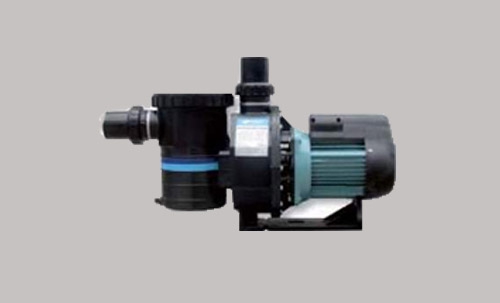

SB Series pump delivers high flow and energy efficiency ultra performance. It is suitable for commercial swimming pools. Comes with 2 inch suction with built in transparent lid bucket strainer and 2 inch discharge. Strainer is fitted with ring lock seal design to eliminate leaks and maximise suction efficiency. Available in single phase as well as three phase models.

Asynchornous, Two Poles Motor

130 Class Insulation

IPX5 waterproof

Built in thermal and overload protection

SS Shaft

SS Mechanical Seal

Available in 240V / 380 V

PRODUCT INFORMATION

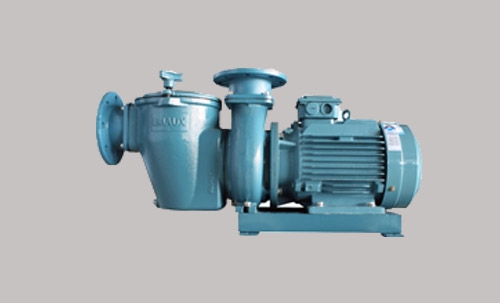

SE Series heavy duty pumps is built for commercial, Large Sized Swimming Pools, Water Features, Spas, Water Parks etc. Cast iron body with easy to clean large strainer basket and Stainless Steel impeller. Available from 5.5 HP to 15 HP with ABB motors.

Asynchornous, Two Poles Motor

Class B Insulation

IP55 waterproof

Built in thermal and overload protection

Cast Iron or SS 304 Impeller

SS Mechanical Seal

Available in 380 V/50 Hz

PRODUCT INFORMATION

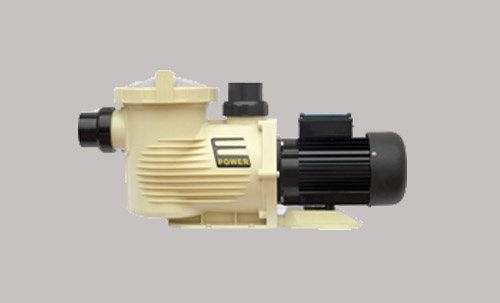

EPH Series Pumps are suitable for Commercial Swimming Pools. 2 inch suction and discharge port with transparent lid on built in strainer basket at the suction of the pump. Ring lock seal design for easy maintenance. EPS series pumps are available in various models, with single phase and three phase connection.

Asynchornous, Two Poles Motor

Class 130 Insulation

IPX5 waterproof

Built in thermal and overload protection

SS316 Shaft

SS 316Mechanical Seal

Available in 220 V / 380 V

PRODUCT INFORMATION

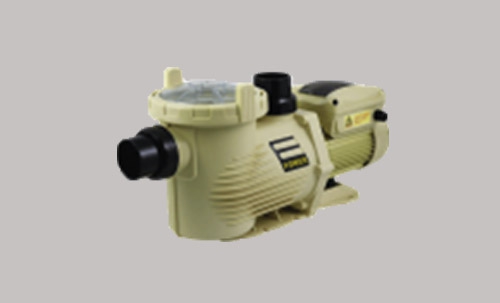

EPV series pumps are variable speed pumps to reduce the energy usage of pool, spa, water fall, water features etc. EPV series pumps utilizes PMM technology, it produces a magnetic field between rotor and windings. Energy saving is done from the ability to reduce the RPM of the motor. Unlike standard motors, PMM motor gains efficiency by the magnets working to spin the rotor, achieving efficiency ratings of 90 %. Supplied with programmable remote to set speed and voltage.

Permanent Magnet Motor

TEFC Design

Aluminium Casing

5L Strainer basket

SS316 Shaft and Mechanical Seal

IPX5 waterproof

MODEL EPV-150

TECHNIAL SPECIFICATIONS
